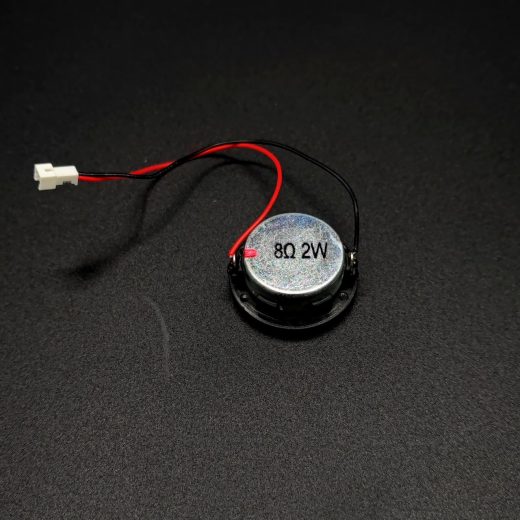

28mm 2W Speaker with plug and play connector
5,50 €
In stock
NEW 2023 MODEL equipped with plug and plaly JST connector (pitch 1.25mm)
Compatible with all Anima Core generations.
Performance
Normal 2 Watts Maximum / 3 Watts Sine Wave
Resonant Frequency 270 +/- 20 % Hz.
Output Sound Pressure 82 +/- 3 db @ [1 Watt 0.5 Meter LeveL (S.P.L.)]
Frequency Range 150 ~ 20000 Hz. Average SPL – 10 db.
Dimension & Weight
Outer Diameter: 28 mm
Face side Dimension 25 mm
Baffle Opening 25 mm
Magnet
Materials: Rare Earth
Size: 15.5 2.8 mm
Nominal Impedence
8 Ohm +/- 15 %, At 1000 Hz.
In stock
Description
Performance
Normal 2 Watts Maximum / 3 Watts Sine Wave
Resonant Frequency 270 +/- 20 % Hz.
Output Sound Pressure 82 +/- 3 db @ [1 Watt 0.5 Meter LeveL (S.P.L.)]
Frequency Range 150 ~ 20000 Hz. Average SPL – 10 db.
Dimension & Weight
Outer Diameter: 28 mm
Face side Dimension 25 mm
Baffle Opening 25 mm
Magnet
Materials: Rare Earth
Size: 15.5 2.8 mm
Nominal Impedence
8 Ohm +/- 15 %, At 1000 Hz.
Additional information
| Weight | 0,0154 kg |
|---|---|
| Dimensions | 3 × 3 × 1,5 cm |
| Weight | 0,0154 kg |
| Dimensions | 2,8 x 2,8 x 0,5 cm |
